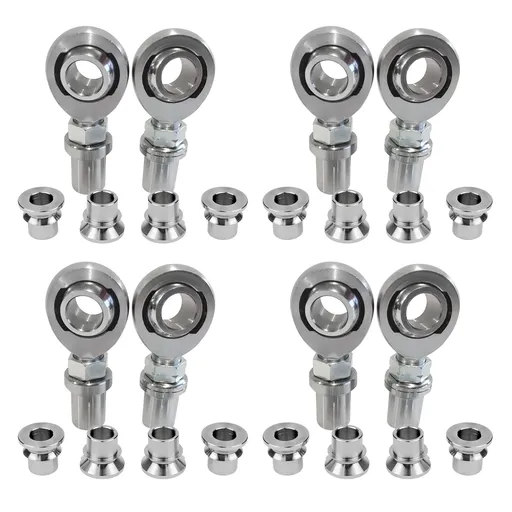

    4x Chromoly Panhard Bar Kit Heim Joint 5/8 x 5/8-18 with 5/8-1/2 HMS & Bung 0.060

    317.98 158.99
    50% Off

    Unit Type : Heim Joint

    Quantity: 4 Pairs

    Material : Chromoly

    Bung Size : 0.745" OD. x 0.06" Wall x 0.625" ID.

    Thread Size : 5/8"-18

    Heim Joint Dimensions(please confirm the size specification before purchasing order to avoid buying mistakes!!)

    Rod End (XML10 & XMR10)

    • Material: Male, Heat Treated Chromoly, Hard Chrome Plated, Loader Slot Rod End
  • Thread Size: 5/8"-18
  • Ball Bore: .625"
  • Ball Width: .750"
  • Centerline Length: 2.625"
  • Thread Length: 1.625"
  • Load Capacity: 17,995lbs

    Bung

    • Material: 1045 Steel
    • Thread Size: 5/8" -18
    • Bung Size: 0.745" OD. x 0.06" Wall x 0.625" ID.

    High Misalignment Spacer Specs (HMS10-84)

    • Material: Zinc Plated Carbon Steel
    • Insert Dia: .625
    • Inside Bore: .500
    • Outside Boss Dia: 0.825
    • Overall Length In Ball: 1.250
    • Approximate Degree: 54.

    Jam Nut(JNL10S & JNR10S)

    • Material: Carbon Steel, Silver Zinc Plated
    • Thread: 5/8"-18
    • Width: Max 0.938"-Min 0.922"
    • Height: Max 0.387"-Min 0.363"

    Package Includes

    • 4 x LH Thread Rod End
    • 4 x RH Thread Rod End
    • 4 x LH Bung
    • 4 x RH Bung
    • 4 x LH Jam Nut
    • 4 x RH Jam Nut
    • 8 x High Misalignment Spacer
