2006-2014 Polaris Sportsman 500 Rear CV Joint Axle


59.50 59.5 USD 85.00


30% Off

Not Available For Sale


    This combination does not exist.

    • Ship From: US
    • Delivery: Shipping Handling Time 1 Business Day
    • Shipping: This item will charge an extra shipping fee to Remote Areas via USPS or UPS 2-5 Days Delivery Time

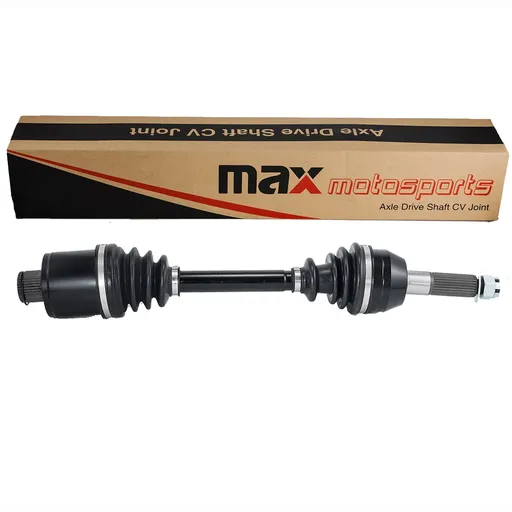

    Product Image

    2006-2014 Polaris Sportsman 500 Rear CV Joint Axle

    85.00 59.50
    30% Off

    Unite Type: CV Joint Axle

    Placement on Vehicle: Rear Right

    Quantity: 1 Pc

    Why Choose Maxmotosports ATV Axle

    Maxmotosports ATV Axles,also known as a CV axle shaft or CV joint axle shaft,are brand new and greased to help with reliable performance and durability in extreme conditions.If you notice symptoms of bad axle or hear loud clicking noises when making a turn,it might be time to consider an axle replacement.Whether looking for an ATV front axle or ATV rear axle, trust Hexautoparts. All Maxmotosports ATV Axles are manufactured in strict accordance with OEM specifications, provide Technical Help For ATV/UTV CV Joint Axle Replacement.You can buy them with confidence!


    • High Performance Material:
      Bell Frame: The material of bell frame is CF53, strength and abrasion resistance was improved while intermediate frequency after normalization
      Axle: We use 4340 Chromoly steel which fit to ASTM A29M-2011A,the strength improve more than 30% compared with 40
      Rubber Boot: Using CR material from DU PONT,fitting to ATV/UTV many times testing.
      Oil Grease: We use a moly based grease which can be used in -40 degree and 180 degreee,provide superior joint lubrication.
      Clamp: We use automatic special clamp,the automatic tension machine enure the tension is the same for all the clamps.
    • Easy installation: Our cv axle replacement arrives fully assembled including neoprene cv boot,inboard and outboard universal CV joints for quick installation.
    • Provide Superior Performance: These ATV/UTV axles are brand new and engineered to provide superior performance and exceptional off-road durability,suitable for all levels of riders and terrain.



    2006-2007 Sportsman 450 4x4
    2006-2014 Sportsman 500 4x4
    2006-2010 Sportsman 500 HO 4x4
    2006-2007 Sportsman 700 4x4
    2006-2011 Sportsman 800 4x4
    2008 Sportsman 800 HO 4x4
    2012 Militray Sportsman 4x4

    Polaris Sportsman 500 Rear Axle Specification

    • Outboard CV joint spline count: 26
    • Inboard CV joint spline count: 36
    • Compressed overall axle length: 553mm
